ITO COATED GLASS SLIDES TIX002 SERIES

 ITO COATED GLASS SLIDES TIX002 SERIES :

Indium tin oxide conductive glass belongs to the group of TCO (transparent conducting oxide) conductive glasses. An ITO glass has a property of low sheet resistance and high transmittance. It is mostly used in research and development. ITO coated glasses are widely used to organic/inorganic heterojunction solar cells,Schottky solar cells, CdTe solar cells and other various thin film solar cells as transparent semiconductor oxide electrode materials since their transparency and high conductivity.

.

General Description :

Specified ITO Sheet resistivity – ≤ 10 ohms/sq
Typical ITO Sheet resistivity – 8~10 ohms/sq
Transmittance at 550nm – ≥ 83%
ITO film Thickness – 1800-2000 Å
L x W x Thickness : 50mm × 25mm × 1.1mm
Surface Resistivity : ~10 ohms/sq

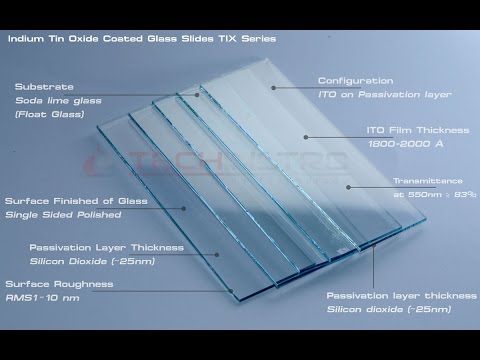

Physical Properties

Configuration – ITO on Passivation layer on Glass Substrate – Soda lime glass / Float Glass Surface finished of glass – Single Sided polished Passivation layer thickness – Silicon dioxide (~25nm) ITO coating method – Magnetron sputtering at ~300°C under vacuum condition ITO work function – 4.8~4.9eV (measured by UPS) after proper cleaning Surface Roughness – RMS1~10 nm, depend on various product.
